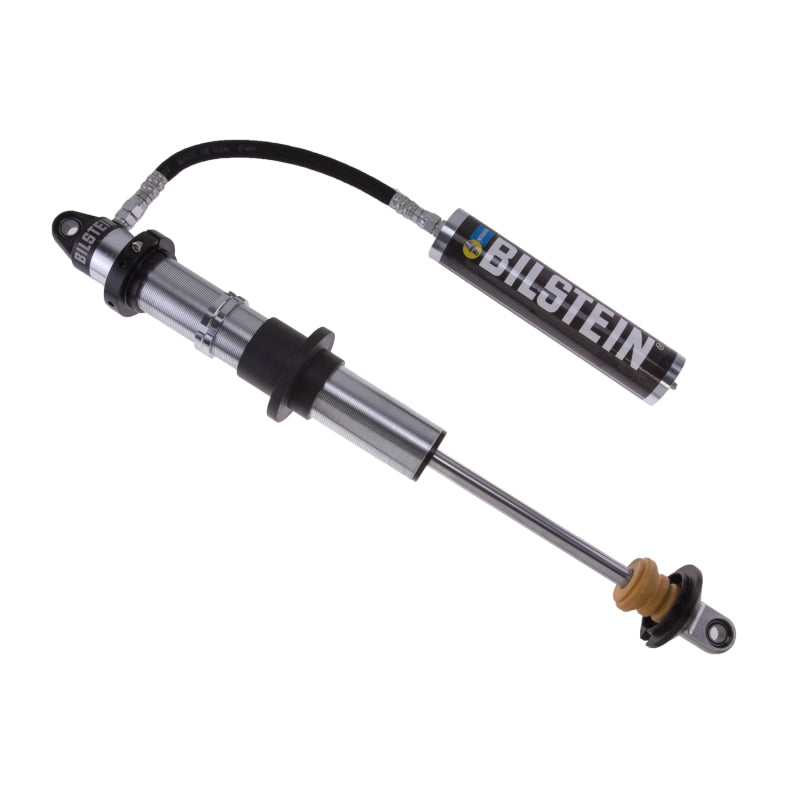

Bilstein 8125 Series 32.5in Extended Length 20.5in Collapsed Length 60mm Monotube Shock Absorber - bil33-225531

Designed for the serious off-road enthusiast. Available in multiple lengths for a wide range of custom applications, B8 8125 shocks feature the highest quality machined components for long lasting durability. *Features & Benefits:* * Available in 60mm and 46mm monotubes * Available from 5” to 16” of travel * Threaded body with dual rate coilover hardware * Monotube design for fade-free performance * Remote reservoir for improved heat dissipation * High temperature seal extends life of shock * 22mm case hardened piston rod provides brute tensile strength while resisting sand blasting and rock chipping * Zinc plated to withstand harsh off-road elements * High temperature, size -8 hose * Owner rebuildable * Industry standard 5/8” bearing * All components are billet machined * Made in the USA *Special Notes:* * The B8 8125 shocks use industry standard coilover springs - 60mm shock uses a 3.0” ID spring while the 46mm shock uses a 2.5” ID spring * BILSTEIN does not manufacture or sell coil springs for off-road use. However, most BILSTEIN off-road retailers sell springs. They can also offer advice on spring rates PartNumber : bil33-225531 Description : B8 8125 - Shock Absorber Series : 8125 Series Boot Included : No Internal Design : Monotube Lower Mount Type : 5/8in. heim with 1/2in. heim spacers (1.5in. width spacing) Upper Mount Type : 5/8in. heim with 1/2in. heim spacers (1.5in. width spacing) *Collapsed Length (IN) : 20.5 *Extended Length (IN) : 32.5 Body Design : 60mm ID Threaded Body Screw Top (Coilover) Finish : Zinc Plated Reservoir : Yes *Collapsed Length (MM) : 520.7 *Extended Length (MM) : 825.5 *Compression : 1100 *Rebound : 3700 Title : Bilstein Shock Absorbers Collapsed Length (IN) : 20.5 Collapsed Length (MM) : 520.7 Compression : 1100 Extended Length (IN) : 32.5 Extended Length (MM) : 825.5 Rebound : 3700 Body Diameter (ID) : 60mm Collapsed Length (IN) Rounded : 21 Compression @0.52m/s : 1100 Extended Length (IN) Rounded : 33 Mount Type : Eye-to-Eye Optional Reservoir Clamp : N/A Rebound @0.52m/s : 3700 Body Design : Threaded Body Screw Top (Coilover) Lower Mount Type : Eye .5x1.5in Series : B8 8125 Upper Mount Type : Eye .5x1.5in California Proposition 65 : WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov Suspension::Shocks and Struts
