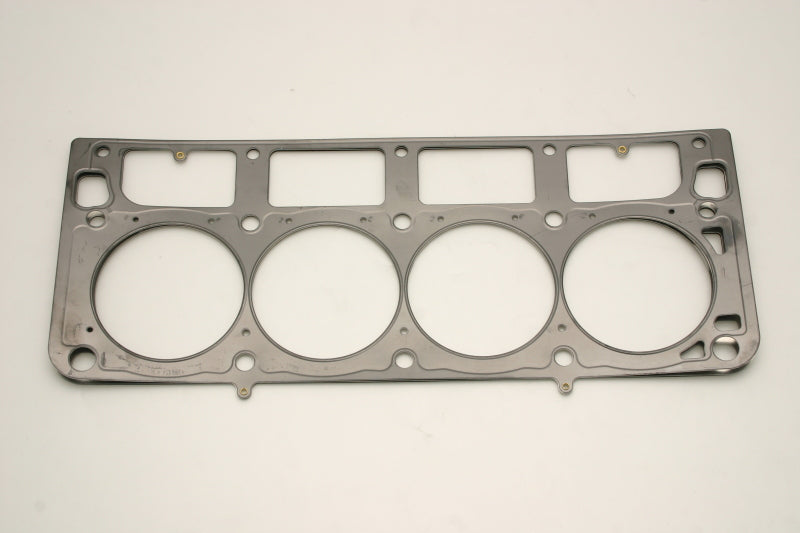

Cometic GM LS1 (w/M.I.D. Sleeves) 4.125 inch Bore .060 inch MLS-5 Headgasket - cgC5789-060

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs. *MLS* The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, it’s ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F. The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks. The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion. *CFM-20* A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils. *COPPER* PartNumber : cgC5789-060 Description : MLS Cylinder Head Gasket; For Block w/ MID Sleeves Engine Block Configuration : w/MID Sleeves Engine : GM Gen III/IV Small Block V8 LS Series Thickness : .060" Thickness : .060in Engine Make/Size : GM Gen III/IV LS Series Position : Left Or Right Add-On Part : NA Title : C5789-060 - Cometic Gaskets - .060in. MLS Cylinder Head Gasket; 4.125in. Gasket Bore. Each 2001-2004 Avanti II Base V8.-cc Engine Components::Head Gaskets 2004-2005 Cadillac CTS V V8.-cc Engine Components::Head Gaskets 2006-2007 Cadillac CTS V V8.5967cc Engine Components::Head Gaskets 2009-2014 Cadillac Escalade Base V8.-cc Engine Components::Head Gaskets 2007-2008 Cadillac Escalade Base V8.6162cc Engine Components::Head Gaskets 2010-2014 Cadillac Escalade Base V8.6162cc Engine Components::Head Gaskets 2007-2008 Cadillac Escalade Base V8.6199cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade Luxury V8.-cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade Luxury V8.6162cc Engine Components::Head Gaskets 2009-2014 Cadillac Escalade Platinum V8.-cc Engine Components::Head Gaskets 2008 Cadillac Escalade Platinum V8.6162cc Engine Components::Head Gaskets 2010-2014 Cadillac Escalade Platinum V8.6162cc Engine Components::Head Gaskets 2008 Cadillac Escalade Platinum V8.6199cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade Premium V8.-cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade Premium V8.6162cc Engine Components::Head Gaskets 2009-2014 Cadillac Escalade ESV Base V8.-cc Engine Components::Head Gaskets 2007-2008 Cadillac Escalade ESV Base V8.6162cc Engine Components::Head Gaskets 2010-2014 Cadillac Escalade ESV Base V8.6162cc Engine Components::Head Gaskets 2007-2008 Cadillac Escalade ESV Base V8.6199cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade ESV Luxury V8.-cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade ESV Luxury V8.6162cc Engine Components::Head Gaskets 2009-2014 Cadillac Escalade ESV Platinum V8.-cc Engine Components::Head Gaskets 2008 Cadillac Escalade ESV Platinum V8.6162cc Engine Components::Head Gaskets 2010-2014 Cadillac Escalade ESV Platinum V8.6162cc Engine Components::Head Gaskets 2008 Cadillac Escalade ESV Platinum V8.6199cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade ESV Premium V8.-cc Engine Components::Head Gaskets 2011-2014 Cadillac Escalade ESV Premium V8.6162cc Engine Components::Head Gaskets 2009-2013 Cadillac Escalade EXT Base V8.-cc Engine Components::Head Gaskets 2007-2008 Cadillac Escalade EXT Base V8.6162cc Engine Components::Head Gaskets 2010-2013 Cadillac Escalade EXT Base V8.6162cc Engine Components::Head Gaskets 2007-2008 Cadillac Escalade EXT Base V8.6199cc Engine Components::Head Gaskets 2011-2013 Cadillac Escalade EXT Luxury V8.-cc Engine Components::Head Gaskets 2011-2013 Cadillac Escalade EXT Luxury V8.6162cc Engine Components::Head Gaskets 2011-2013 Cadillac Escalade EXT Premium V8.-cc Engine Components::Head Gaskets 2011-2013 Cadillac Escalade EXT Premium V8.6162cc Engine Components::Head Gaskets 2013 Chevrolet Avalanche Black Diamond LS V8.5328cc Engine Components::Head Gaskets 2013 Chevrolet Avalanche Black Diamond LT V8.5328cc Engine Components::Head Gaskets 2013 Chevrolet Avalanche Black Diamond LTZ V8.5328cc Engine Components::Head Gaskets 2007-2012 Chevrolet Avalanche LS V8.5328cc Engine Components::Head Gaskets 2007-2012 Chevrolet Avalanche LT V8.5328cc Engine Components::Head Gaskets 2007-2009 Chevrolet Avalanche LT V8.5967cc Engine Components::Head Gaskets 2007-2012 Chevrolet Avalanche LTZ V8.5328cc Engine Components::Head Gaskets 2007-2009 Chevrolet Avalanche LTZ V8.5967cc Engine Components::Head Gaskets 1997 Chevrolet C1500 Base V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C1500 Cheyenne V8.-cc Engine Components::Head Gaskets 1999 Chevrolet C1500 LS V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C1500 Silverado V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C1500 WT V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet C1500 Suburban Base V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet C1500 Suburban LS V8.-cc Engine Components::Head Gaskets 1997 Chevrolet C1500 Suburban LT V8.-cc Engine Components::Head Gaskets 1997 Chevrolet C2500 Base V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet C2500 Base V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C2500 Cheyenne V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet C2500 LS V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C2500 Silverado V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C2500 WT V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet C2500 Suburban Base V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet C2500 Suburban LS V8.-cc Engine Components::Head Gaskets 1997 Chevrolet C2500 Suburban LT V8.-cc Engine Components::Head Gaskets 1997 Chevrolet C3500 Base V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet C3500 Base V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C3500 Cheyenne V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet C3500 LS V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet C3500 Silverado V8.-cc Engine Components::Head Gaskets 2010-2015 Chevrolet Camaro SS V8.-cc Engine Components::Head Gaskets 2010-2015 Chevrolet Camaro SS V8.6162cc Engine Components::Head Gaskets 1997-2002 Chevrolet Camaro Z28 V8.-cc Engine Components::Head Gaskets 1997 Chevrolet Camaro Z28 30th Anniversary Edition V8.-cc Engine Components::Head Gaskets 1998-2002 Chevrolet Camaro Z28 SS V8.-cc Engine Components::Head Gaskets 1997 Chevrolet Camaro Z28 SS 30th Anniversary Edition V8.-cc Engine Components::Head Gaskets 2014-2015 Chevrolet Camaro ZL1 V8.-cc Engine Components::Head Gaskets 2012-2016 Chevrolet Caprice PPV V6.-cc Engine Components::Head Gaskets 2011-2016 Chevrolet Caprice PPV V8.5967cc Engine Components::Head Gaskets 2003 Chevrolet Corvette 50th Anniversary Edition V8.-cc Engine Components::Head Gaskets 2003 Chevrolet Corvette 50th Anniversary Edition Pace Car V8.-cc Engine Components::Head Gaskets 1997-2005 Chevrolet Corvette Base V8.-cc Engine Components::Head Gaskets 2008-2013 Chevrolet Corvette Base V8.-cc Engine Components::Head Gaskets 2006-2007 Chevrolet Corvette Base V8.5967cc Engine Components::Head Gaskets 2008-2013 Chevrolet Corvette Base V8.6162cc Engine Components::Head Gaskets 2010-2013 Chevrolet Corvette Grand Sport V8.-cc Engine Components::Head Gaskets 2010-2013 Chevrolet Corvette Grand Sport V8.6162cc Engine Components::Head Gaskets 1998 Chevrolet Corvette Indianapolis 500 Pace Car V8.-cc Engine Components::Head Gaskets 2001-2004 Chevrolet Corvette Z06 V8.-cc Engine Components::Head Gaskets 2003-2005 Chevrolet Express 1500 Base V6.-cc Engine Components::Head Gaskets 1997-2002 Chevrolet Express 1500 Base V8.-cc Engine Components::Head Gaskets 1997-2002 Chevrolet Express 1500 LS V8.-cc Engine Components::Head Gaskets 1997-2002 Chevrolet Express 2500 Base V8.-cc Engine Components::Head Gaskets 1997-2002 Chevrolet Express 2500 LS V8.-cc Engine Components::Head Gaskets 1997-2002 Chevrolet Express 3500 Base V8.-cc Engine Components::Head Gaskets 2005 Chevrolet Express 3500 Base V8.-cc Engine Components::Head Gaskets 2003-2004 Chevrolet Express 3500 Base V8.5967cc Engine Components::Head Gaskets 1997-2002 Chevrolet Express 3500 LS V8.-cc Engine Components::Head Gaskets 1997 Chevrolet K1500 Base V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K1500 Cheyenne V8.-cc Engine Components::Head Gaskets 1999 Chevrolet K1500 LS V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K1500 Silverado V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K1500 WT V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet K1500 Suburban Base V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet K1500 Suburban LS V8.-cc Engine Components::Head Gaskets 1997 Chevrolet K1500 Suburban LT V8.-cc Engine Components::Head Gaskets 1997 Chevrolet K2500 Base V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet K2500 Base V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K2500 Cheyenne V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet K2500 LS V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K2500 Silverado V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K2500 WT V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet K2500 Suburban Base V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet K2500 Suburban LS V8.-cc Engine Components::Head Gaskets 1997 Chevrolet K2500 Suburban LT V8.-cc Engine Components::Head Gaskets 1997 Chevrolet K3500 Base V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet K3500 Base V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K3500 Cheyenne V8.-cc Engine Components::Head Gaskets 1999-2000 Chevrolet K3500 LS V8.-cc Engine Components::Head Gaskets 1997-1998 Chevrolet K3500 Silverado V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet P30 Base V8.-cc Engine Components::Head Gaskets 2010-2013 Chevrolet Silverado 1500 LS V8.-cc Engine Components::Head Gaskets 2010-2013 Chevrolet Silverado 1500 LS V8.5328cc Engine Components::Head Gaskets 2007-2013 Chevrolet Silverado 1500 LT V8.-cc Engine Components::Head Gaskets 2007-2013 Chevrolet Silverado 1500 LT V8.5328cc Engine Components::Head Gaskets 2007-2009 Chevrolet Silverado 1500 LT V8.5967cc Engine Components::Head Gaskets 2010-2013 Chevrolet Silverado 1500 LT V8.6162cc Engine Components::Head Gaskets 2007-2013 Chevrolet Silverado 1500 LTZ V8.-cc Engine Components::Head Gaskets 2007-2013 Chevrolet Silverado 1500 LTZ V8.5328cc Engine Components::Head Gaskets 2007-2009 Chevrolet Silverado 1500 LTZ V8.5967cc Engine Components::Head Gaskets 2009-2013 Chevrolet Silverado 1500 LTZ V8.6162cc Engine Components::Head Gaskets 2007-2012 Chevrolet Silverado 1500 WT V6.-cc Engine Components::Head Gaskets 2013 Chevrolet Silverado 1500 WT V6.4293cc Engine Components::Head Gaskets 2007-2013 Chevrolet Silverado 1500 WT V8.-cc Engine Components::Head Gaskets 2007-2013 Chevrolet Silverado 1500 WT V8.5328cc Engine Components::Head Gaskets 2010-2013 Chevrolet Silverado 1500 XFE V8.5328cc Engine Components::Head Gaskets 2014-2016 Chevrolet SS Base V8.-cc Engine Components::Head Gaskets 2014-2017 Chevrolet SS Base V8.6162cc Engine Components::Head Gaskets 2005-2006 Chevrolet SSR Base V8.5967cc Engine Components::Head Gaskets 2007-2014 Chevrolet Suburban 1500 LS V8.5328cc Engine Components::Head Gaskets 2007-2014 Chevrolet Suburban 1500 LT V8.5328cc Engine Components::Head Gaskets 2007-2009 Chevrolet Suburban 1500 LT V8.5967cc Engine Components::Head Gaskets 2007-2014 Chevrolet Suburban 1500 LTZ V8.5328cc Engine Components::Head Gaskets 2007-2009 Chevrolet Suburban 1500 LTZ V8.5967cc Engine Components::Head Gaskets 2007 Chevrolet Suburban 1500 Z71 V8.5328cc Engine Components::Head Gaskets 1997-1999 Chevrolet Tahoe Base V8.-cc Engine Components::Head Gaskets 2000 Chevrolet Tahoe Limited V8.-cc Engine Components::Head Gaskets 1997-1999 Chevrolet Tahoe LS V8.-cc Engine Components::Head Gaskets 2007-2009 Chevrolet Tahoe LS V8.-cc Engine Components::Head Gaskets 2007-2014 Chevrolet Tahoe LS V8.5328cc Engine Components::Head Gaskets 1997-1999 Chevrolet Tahoe LT V8.-cc Engine Components::Head Gaskets 2007-2014 Chevrolet Tahoe LT V8.5328cc Engine Components::Head Gaskets 2009 Chevrolet Tahoe LTZ V8.-cc Engine Components::Head Gaskets 2007-2014 Chevrolet Tahoe LTZ V8.5328cc Engine Components::Head Gaskets 2008-2009 Chevrolet Tahoe LTZ V8.6162cc Engine Components::Head Gaskets 2008 Chevrolet Tahoe LTZ V8.6199cc Engine Components::Head Gaskets 2012-2014 Chevrolet Tahoe PPV V8.5328cc Engine Components::Head Gaskets 2012-2014 Chevrolet Tahoe SSV V8.5328cc Engine Components::Head Gaskets 2000 Chevrolet Tahoe Z71 V8.-cc Engine Components::Head Gaskets 2006-2009 Chevrolet Trailblazer SS V8.5967cc Engine Components::Head Gaskets 2007-2008 GMC Sierra 1500 Denali V8.6162cc Engine Components::Head Gaskets 2007-2008 GMC Sierra 1500 Denali V8.6199cc Engine Components::Head Gaskets 2010-2013 GMC Sierra 1500 SL V8.-cc Engine Components::Head Gaskets 2010-2013 GMC Sierra 1500 SL V8.5328cc Engine Components::Head Gaskets 2007-2013 GMC Sierra 1500 SLE V8.-cc Engine Components::Head Gaskets 2007-2013 GMC Sierra 1500 SLE V8.5328cc Engine Components::Head Gaskets 2007-2009 GMC Sierra 1500 SLE V8.5967cc Engine Components::Head Gaskets 2010-2013 GMC Sierra 1500 SLE V8.6162cc Engine Components::Head Gaskets 2007-2013 GMC Sierra 1500 SLT V8.-cc Engine Components::Head Gaskets 2007-2013 GMC Sierra 1500 SLT V8.5328cc Engine Components::Head Gaskets 2007-2009 GMC Sierra 1500 SLT V8.5967cc Engine Components::Head Gaskets 2009-2013 GMC Sierra 1500 SLT V8.6162cc Engine Components::Head Gaskets 2007-2013 GMC Sierra 1500 WT V6.-cc Engine Components::Head Gaskets 2007-2013 GMC Sierra 1500 WT V8.-cc Engine Components::Head Gaskets 2007-2013 GMC Sierra 1500 WT V8.5328cc Engine Components::Head Gaskets 2010-2013 GMC Sierra 1500 XFE V8.5328cc Engine Components::Head Gaskets 2009-2014 GMC Yukon Denali V8.-cc Engine Components::Head Gaskets 2007-2008 GMC Yukon Denali V8.6162cc Engine Components::Head Gaskets 2010-2014 GMC Yukon Denali V8.6162cc Engine Components::Head Gaskets 2007-2008 GMC Yukon Denali V8.6199cc Engine Components::Head Gaskets 2007-2009 GMC Yukon SLE V8.-cc Engine Components::Head Gaskets 2007-2014 GMC Yukon SLE V8.5328cc Engine Components::Head Gaskets 2007-2014 GMC Yukon SLT V8.5328cc Engine Components::Head Gaskets 2009-2014 GMC Yukon XL 1500 Denali V8.-cc Engine Components::Head Gaskets 2007-2008 GMC Yukon XL 1500 Denali V8.6162cc Engine Components::Head Gaskets 2010-2014 GMC Yukon XL 1500 Denali V8.6162cc Engine Components::Head Gaskets 2007-2008 GMC Yukon XL 1500 Denali V8.6199cc Engine Components::Head Gaskets 2007-2014 GMC Yukon XL 1500 SLE V8.5328cc Engine Components::Head Gaskets 2007-2009 GMC Yukon XL 1500 SLE V8.5967cc Engine Components::Head Gaskets 2010-2014 GMC Yukon XL 1500 SLT V8.-cc Engine Components::Head Gaskets 2007-2014 GMC Yukon XL 1500 SLT V8.5328cc Engine Components::Head Gaskets 2007-2009 GMC Yukon XL 1500 SLT V8.5967cc Engine Components::Head Gaskets 2010-2014 GMC Yukon XL 1500 SLT V8.6162cc Engine Components::Head Gaskets 2008 Hummer H2 Base V8.6162cc Engine Components::Head Gaskets 2008 Hummer H2 Base V8.6199cc Engine Components::Head Gaskets 1997-2002 Pontiac Firebird Formula V8.-cc Engine Components::Head Gaskets 1997-2002 Pontiac Firebird Trans Am V8.-cc Engine Components::Head Gaskets 2008-2009 Pontiac G8 GT V8.5967cc Engine Components::Head Gaskets 2009 Pontiac G8 GXP V8.-cc Engine Components::Head Gaskets 2009 Pontiac G8 GXP V8.6162cc Engine Components::Head Gaskets 2004 Pontiac GTO Base V8.-cc Engine Components::Head Gaskets 2005-2006 Pontiac GTO Base V8.5967cc Engine Components::Head Gaskets
